Can an Epoxy Resin Dry Type Transformer be used in high - altitude areas?

Hey there! As a supplier of Epoxy Resin Dry Type Transformers, I often get asked if these transformers can be used in high - altitude areas. Let's dive right into this topic and figure it out.

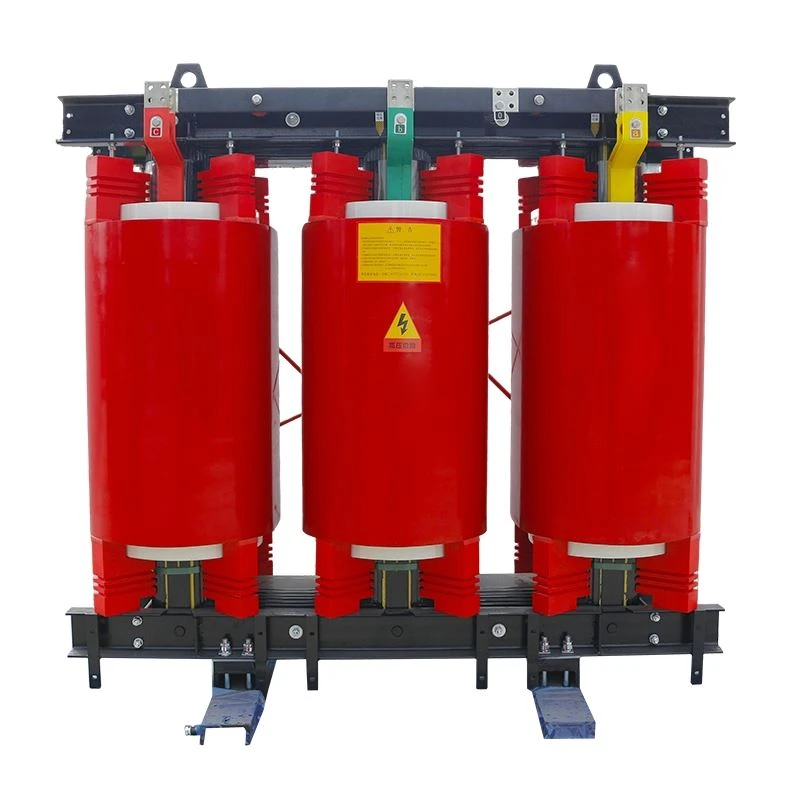

First off, what exactly is an Epoxy Resin Dry Type Transformer? Well, it's a type of transformer that uses epoxy resin as an insulating material. Unlike oil - filled transformers, dry - type transformers don't have any flammable liquid, which makes them a safer option in many situations. They're commonly used in various applications, like in commercial buildings, industrial facilities, and even in some power distribution systems.

Now, let's talk about high - altitude areas. High - altitude regions have some unique environmental conditions. The air is thinner up there, which means there's less oxygen and lower air pressure. These factors can have a significant impact on electrical equipment, including transformers.

One of the main concerns when it comes to using transformers in high - altitude areas is the cooling effect. In normal conditions, air is used to cool the transformer. But at high altitudes, the thinner air has a lower heat - transfer capacity. This means that the transformer might not be able to dissipate heat as effectively as it would at lower altitudes. As a result, the temperature of the transformer could rise, which can lead to premature aging of the insulation and other components.

Another issue is the electrical insulation. The lower air pressure at high altitudes can affect the dielectric strength of the air. In other words, the air becomes a less effective insulator. This can increase the risk of electrical breakdown, such as corona discharge or flashover. And we definitely don't want that happening to our transformers!

However, that doesn't mean Epoxy Resin Dry Type Transformers can't be used in high - altitude areas. There are ways to make them suitable for these conditions.

For the cooling problem, we can design the transformer with larger cooling surfaces. This allows for more heat to be transferred to the surrounding air, even with the reduced heat - transfer capacity. We can also use forced - air cooling systems, like fans, to improve the cooling efficiency. These fans can blow air over the transformer windings, helping to carry away the heat.

When it comes to the insulation issue, we can use high - quality epoxy resin insulation. Epoxy resin has excellent electrical insulation properties and can withstand the challenges posed by high - altitude conditions. We can also increase the insulation thickness to provide an extra layer of protection against electrical breakdown.

Let's take a look at some real - world examples. In some mountainous regions where the altitude is quite high, power companies have successfully used Epoxy Resin Dry Type Transformers. They've made the necessary adjustments to the design and operation of the transformers to ensure reliable performance. For instance, they've installed additional cooling fans and used thicker insulation materials.

Now, if you're thinking about using an Epoxy Resin Dry Type Transformer in a high - altitude area for your project, there are a few things you need to consider. First, you need to know the exact altitude of the location. This will help us determine the specific design requirements for the transformer. You also need to think about the load requirements. How much power will the transformer need to handle? This will affect the size and capacity of the transformer we recommend.

We also offer other types of transformers that might be relevant to your needs. For example, the Auxiliary Transformer in Substation is often used in substations to provide power for auxiliary equipment. And if you're looking for a transformer for indoor use, our Indoor Dry Type Transformer is a great option.

If you're interested in purchasing an Epoxy Resin Dry Type Transformer for your high - altitude project, don't hesitate to get in touch with us. We have a team of experts who can help you choose the right transformer and make sure it's properly installed and maintained. Whether you're a small business owner or part of a large power utility, we can provide you with the solutions you need.

In conclusion, while there are challenges associated with using Epoxy Resin Dry Type Transformers in high - altitude areas, with the right design and adjustments, they can be a reliable and safe option. So, if you're in the market for a transformer for a high - altitude location, give us a shout. We're here to help you make the best choice for your electrical needs.

References:

• Electrical Engineering Handbook, various editions
• Industry reports on transformer performance in high - altitude areas
