Factory Acceptance Testing Of Transformer Explosion Protection Successfully Completed For Kazakhstan GPP Project
Leave a message
The acceptance kicked off with our in-house engineering team introducing the structural design, technical principles and core competitive merits of the Transformer Explosion Protection. Representing the 3rd-generation mature transformer explosion suppression equipment in fire safety technology, the system boasts four revolutionary upgrades compared with traditional domestic transformer safety solutions:
1. Overhauled anti-explosion trigger control logic
Conventional transformer safety products depend on transformer pressure relief valves for explosion prevention, resulting in lengthy signal transmission routes and obvious response lag. Differently, the upgraded Transformer Explosion Protection integrates a pressure reducing component fitted with aerospace-grade stainless steel rupture discs. Once internal arc faults create instantaneous pressure shockwaves inside transformers, the built-in bursting diaphragm breaks instantly to activate protection, eliminating response delay from the physical design level.
2. Remarkably upgraded sealing stability and service lifespan
Traditional safety equipment adopts butterfly valve construction; its sealing gaskets degrade after 2 to 3 years of running, causing frequent hidden risks of transformer oil leakage. Our Transformer Explosion Protection adopts combined sealing structure composed of stainless steel fixture hard seal and nitrile rubber packing, drastically boosting long-term sealing performance and avoiding persistent oil seepage issues.
3. Improved nitrogen flooding efficiency for enhanced transformer fire suppression

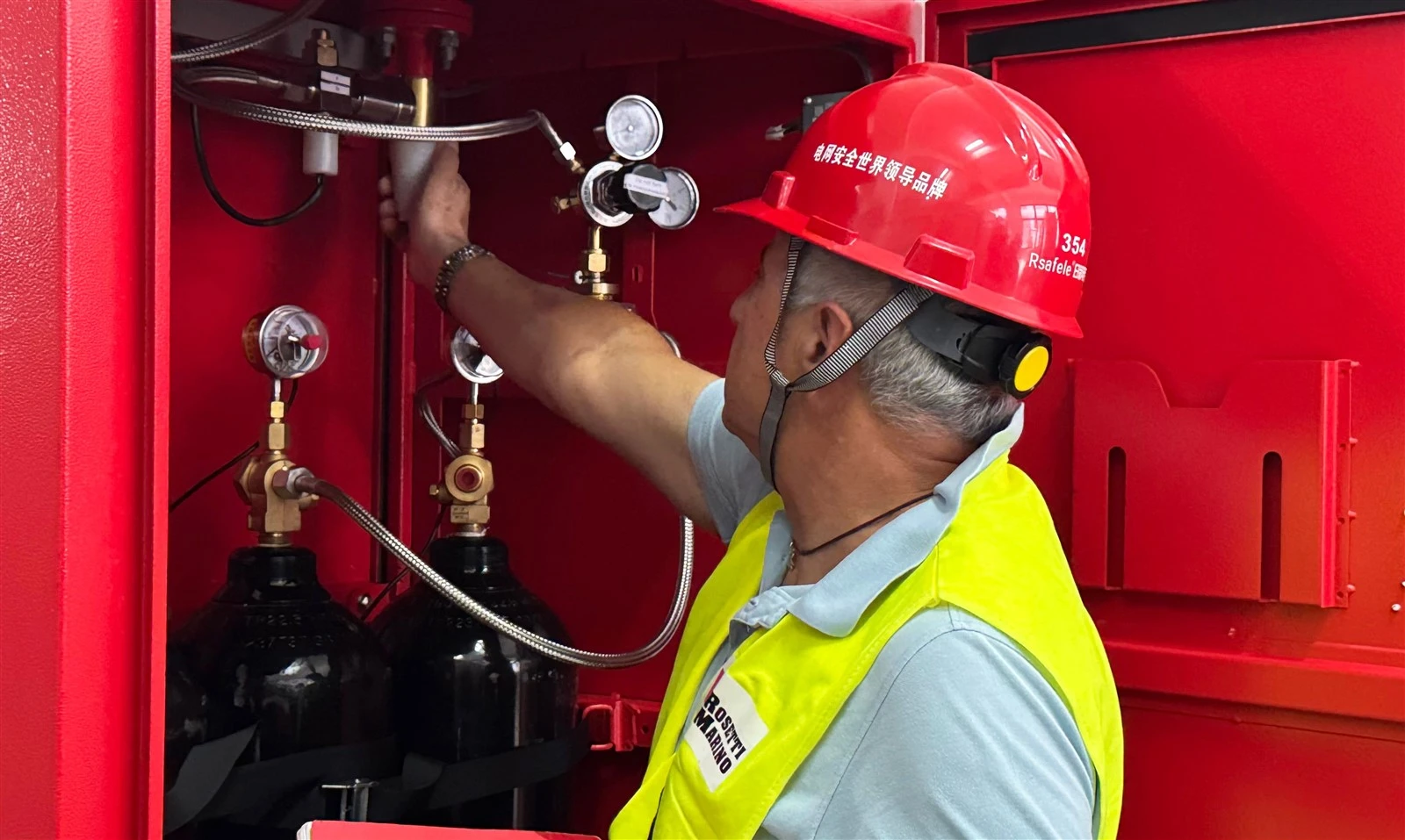

Ordinary safety units only configure two nitrogen storage cylinders, while the optimized Transformer Explosion Protection upgrades to three nitrogen tanks. The increased nitrogen capacity extends continuous nitrogen injection duration, delivers sufficient cooling effect, and better dilutes flammable gas as well as isolates ambient oxygen to put out transformer fires faster.
4. Innovative oil-gas separation design for improved safety and eco-friendliness
Traditional equipment directly drains waste transformer oil into emergency oil pits, making insulating oil unrecyclable and leaving combustible mixed gas prone to on-site flash fire accidents. Equipped with dedicated oil-gas separation tank, our Transformer Explosion Protection realizes full recovery and reuse of drained transformer oil. Hazardous combustible gas gets separated, diluted via nitrogen purging and exhausted to designated safe zones through exclusive vent pipelines, completely eradicating secondary deflagration hazards at transformer operation sites.
During technical consultation sessions, two sides held in-depth exchanges focusing on critical concerns including stable operation under Kazakhstan's extreme low-temperature environment down to -40℃, remote signal docking for intelligent monitoring, as well as field installation and commissioning essentials of the transformer explosion suppression equipment. Our professional engineers responded to all client queries item by item and demonstrated real-device operations covering rupture disc triggering mechanism, full-set control system linkage test and core component running inspection with physical samples. The overseas customer spoke highly of the diaphragm-based pressure relief design, precise control programming and premium fabrication workmanship of our Transformer Explosion Protection.
In formal acceptance testing procedures, our team together with the client's technical group followed international NFPA 850 standard specifications and finished all 27 standardized routine tests covering exterior craftsmanship, electrical parameters, mechanical action performance and interlock safety functions of the transformer fire protection system.

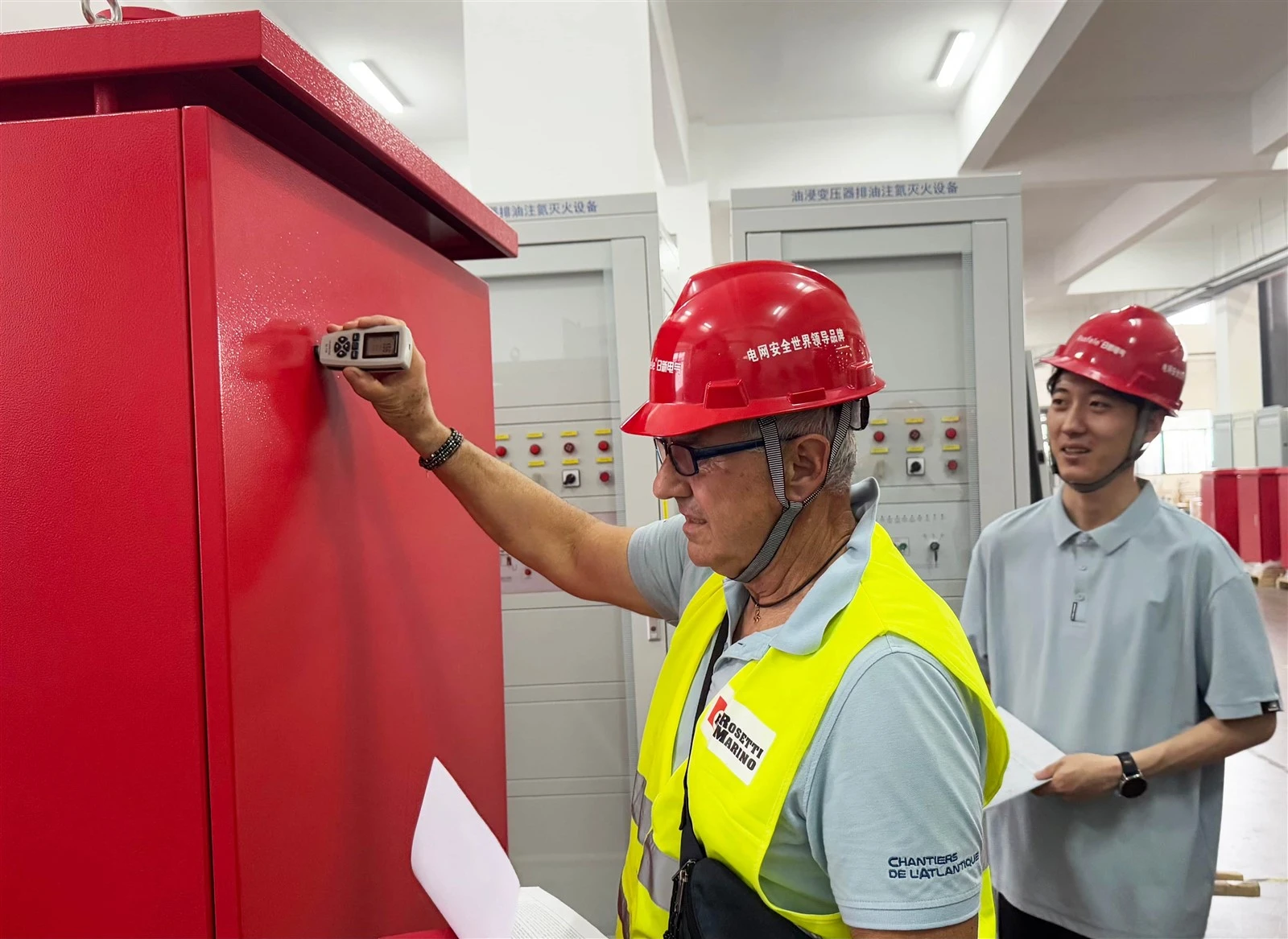

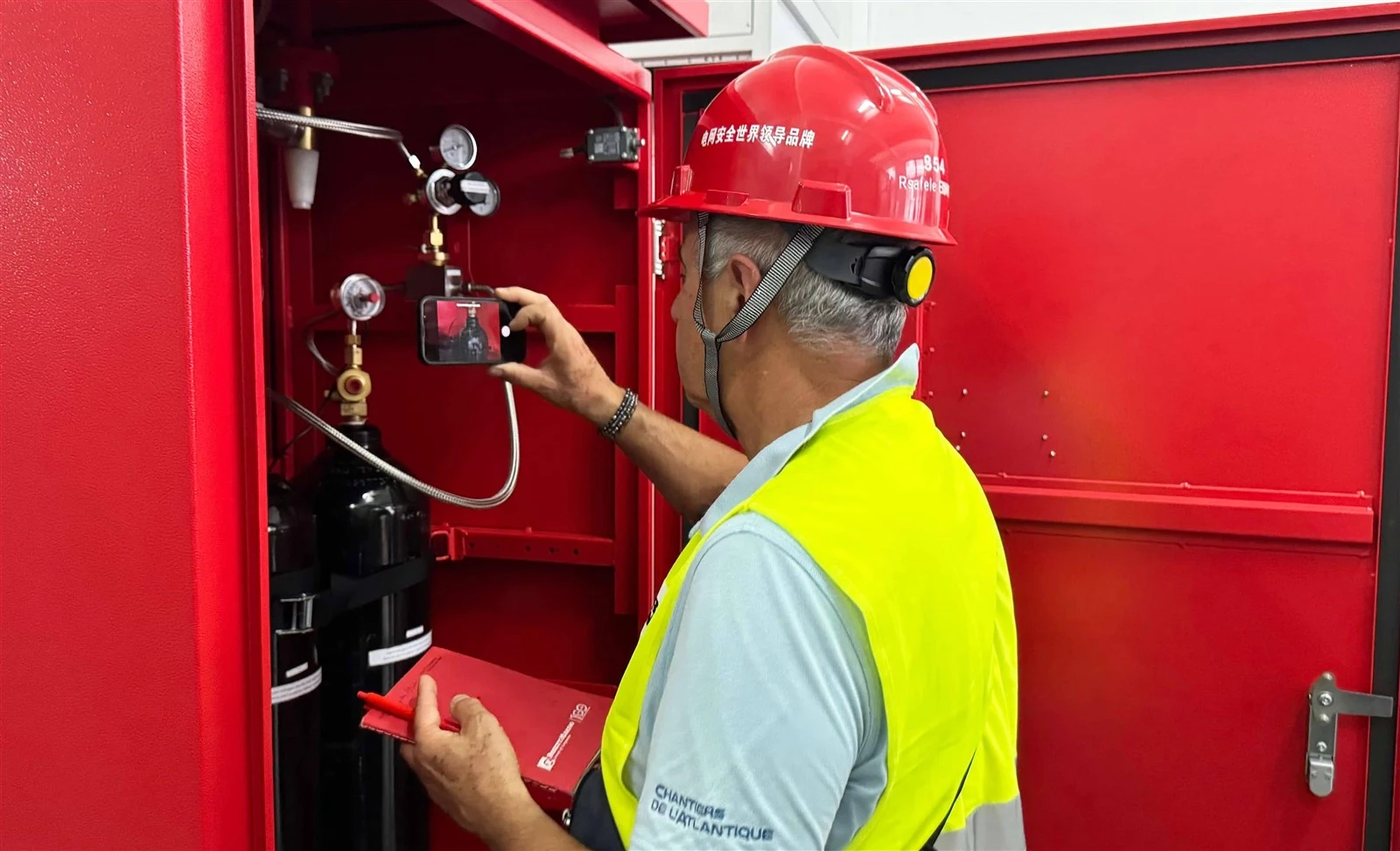

For appearance inspection work, the client's technical team firstly checked calibration certificates of all testing instruments to confirm valid calibration cycles and verified measuring precision with standard calibration blocks. Coating thickness test data shows all equipment outer paint layer exceeds 120μm, outperforming the project's specified 100μm minimum requirement, which greatly strengthens anti-corrosion capability and prolongs the overall service life of the Transformer Explosion Protection.

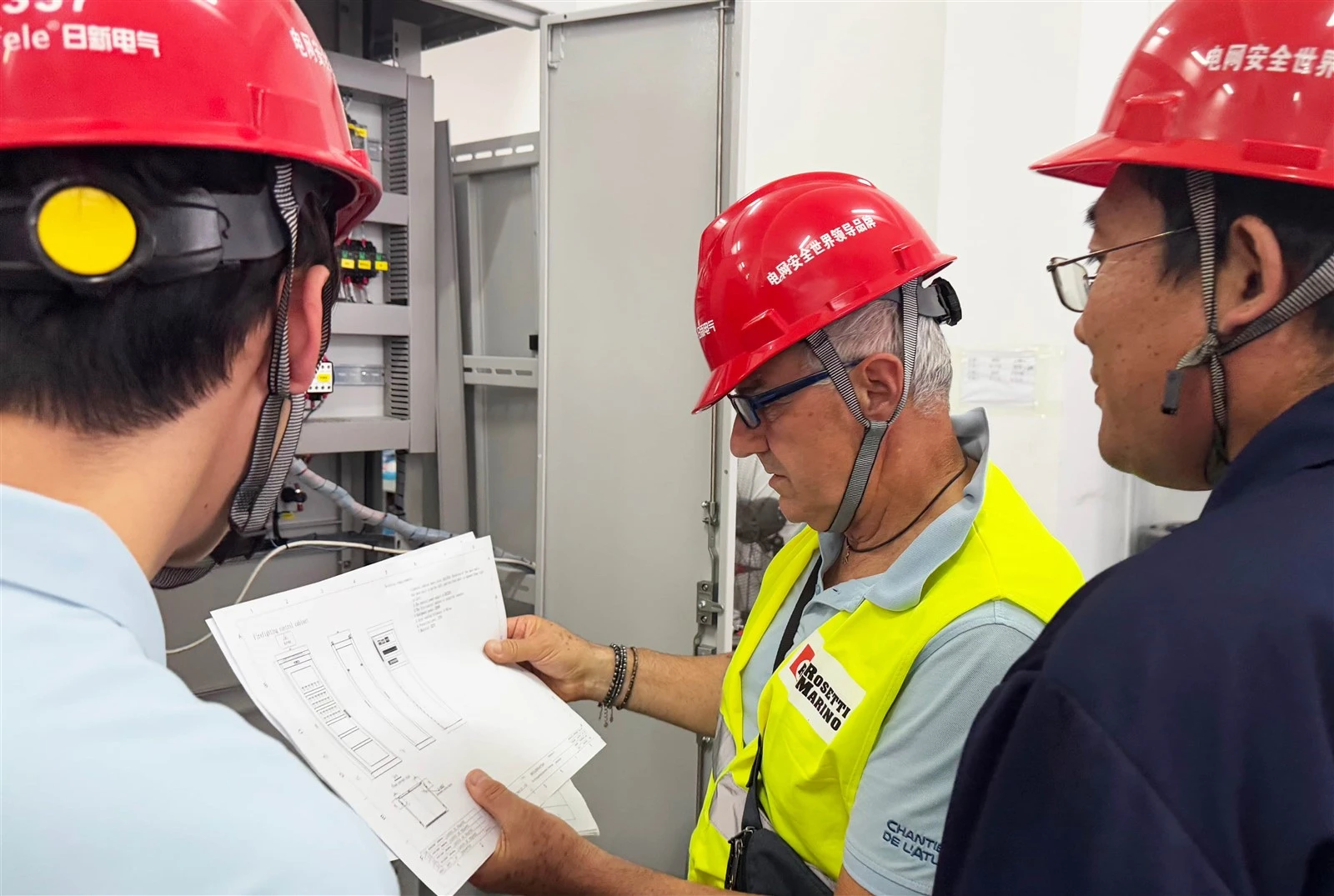

In subsequent electrical, mechanical and interlock function tests, inspectors verified every core control circuit of the transformer explosion protection equipment one by one:
- Rupture disc feedback signal: The onboard indicator lights up once the rupture disc triggers and transmits sensing data to the central control cabinet;
- Main transformer heavy gas alarm signal: Corresponding pilot lamp activates when the control unit receives heavy gas fault signal from transformer tank;
- Cut-off valve feedback signal: Indicator turns on upon full closure of the flow cut-off valve;
- Automatic nitrogen injection signal: Control panel lamp lights when the Transformer Explosion Protection starts nitrogen filling;
- Global system startup signal: Startup indicator illuminates synchronously with system nitrogen injection action;
- Manual mode check: Dedicated pilot lamp lights after switching the system to manual control mode;
- Auto mode check: Corresponding indicator glows when switching to automatic operation mode.
Under regular working conditions, cabinet lock-type control switches stay at "Running Status" and "Auto Startup" positions with matched indicator lights powered on. The whole set of Transformer Explosion Protection will launch full protection once three triggering signals (rupture disc startup, transformer heavy gas alarm, circuit breaker trip signal) come into effect simultaneously. After a 3-second delay, nitrogen control valve opens and maintains continuous nitrogen injection over 30 minutes. Constant nitrogen circulation agitates transformer insulating oil and rapidly cools down oil temperature below flash point; meanwhile, flow cut-off valve shuts off automatically to contain fault spread. All test items passed inspection in one go with all technical indicators meeting international standards. The foreign client signed factory acceptance paperwork on location and approved product delivery arrangements for the transformer fire protection system.
The smooth handover of this factory acceptance not only verifies outstanding product quality of our Transformer Explosion Protection, but also marks vital market progress for our transformer explosion suppression equipment in Kazakhstan's power industry. This successful project builds solid cooperation foundations for long-term business expansion with Central Asian power clients. As a professional manufacturer, Rsafele Electric keeps focusing on R&D and production of high-end power safety devices, sticks to strict production standards and rigorous quality inspection to continuously optimize transformer explosion protection solutions. We aim to supply cost-effective and reliable transformer safety products for global power enterprises and facilitate sustainable advancement of worldwide new energy and power grid construction.
